PAS Sensor PAS-B12




          This is  an Integrated sensor, it can be fixed at left  or right side of bottom brackets Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal  when forward and stop sending  when backwards.


    DetailedDownload


    Product&Technical Parameters




    ModelPASB12
    TypePAS Sensor
    Size(mm)Φ50.8*7
    MaterialPOM
    Power5V/2mA
    Signal12Pules Per Circle
    Axel Size(mm)Φ15-15.8


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test




    IP-CodeIP65

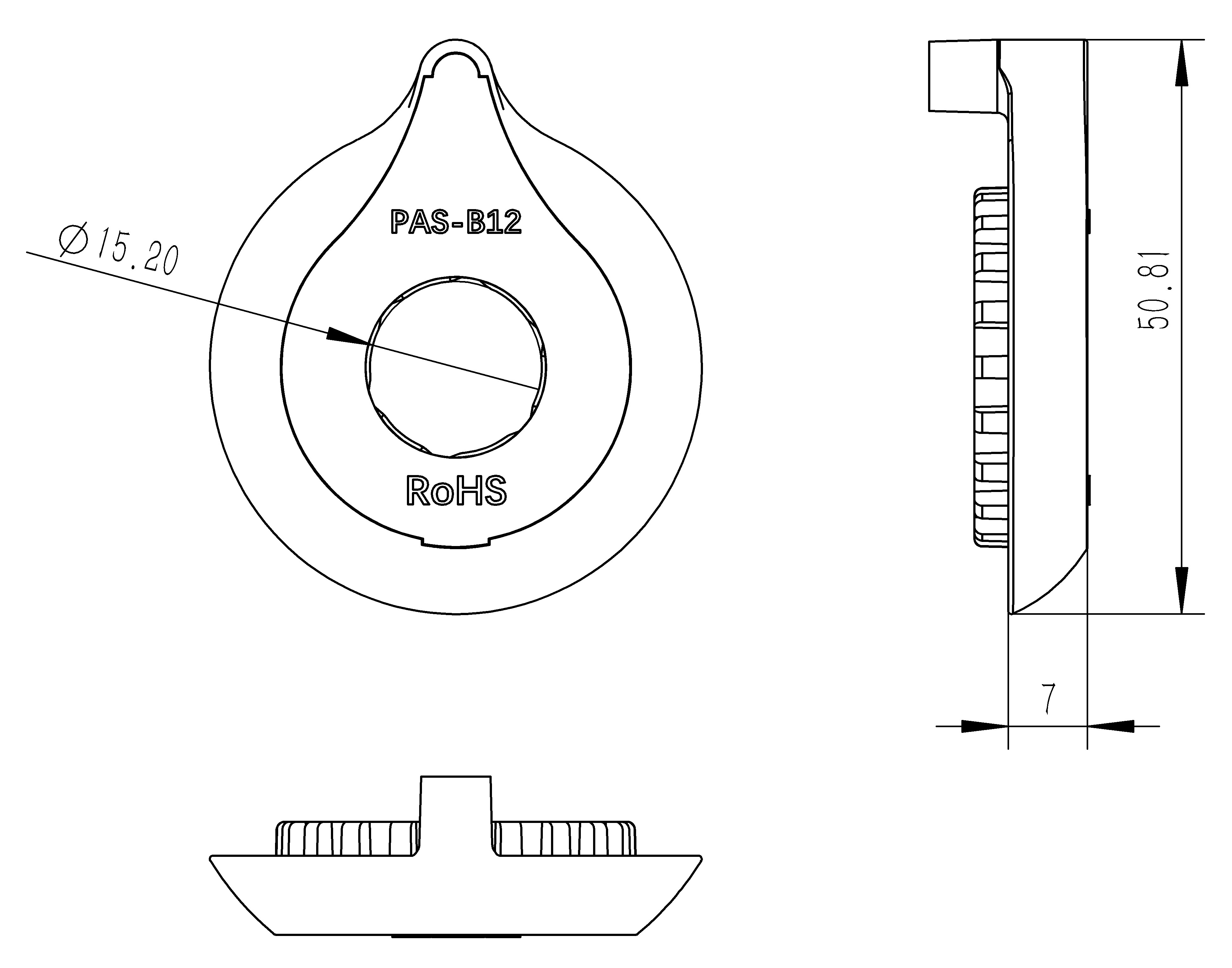

    Structure Size
