Shift Sensor SS-01




           Chain or gear will be broken easily at Mid-motor drive system if system can not cut power on time during gear-changing process .

           Newest In-Line Shift sensor can solve that problem properly, this sensor can be fixed on derailleur cable ,a signal will transfer to system from sensor at gear-changing process , control system cut-off the power according to this signal , the main feature is smaller size ,easily to fix, high sensitivity.


    DetailedDownload


    Product&Technical Parameiers




    ModelSS-01
    TypeShift Sensor
        Size(mm)47*18*12
     MaterialIntensive ABS
    Power5V/1mA
    SignalPulse
    ProtectionShort Circuit
    Weight(g)6.4


    Connector Specification




    RedVCC
    WhiteSIG
    BlackGND

    Test




    IP-CodeIP65

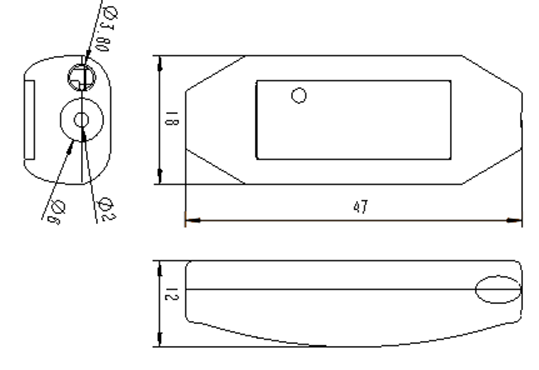

    Structure Size
