| How to check Hydraulic brake level active or disactive is a big issues on ebike ,Now ,this trouble was complete solved after BK-2R launched. This sensor combined with 2 parts one is sensor body and others is a small magnet , size is very small so only need to stick both of them on the brake level, then , it can check the brake active and disactive and a switch signal will be output.
|
Product＆Technical Paramet
| Model | BK-2R | | Type | Break Sensor | | Size | 26*11.5*6 | | Material | Intensive ABS |
| | Max load Voltage | 175VDC | | Max Operating Current | 1A | | Magnet Size | Φ10*3 | | Weight（g） | 4 |
|
Connector Specification
Test

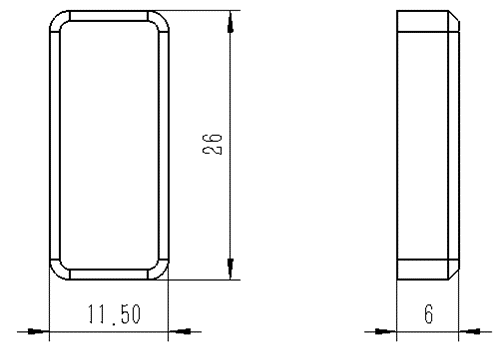

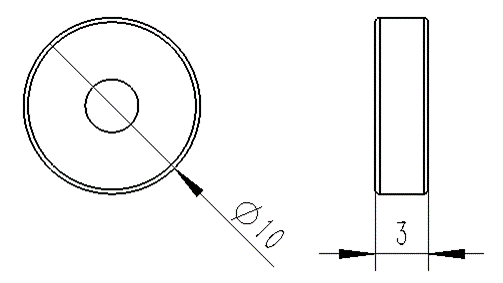

Structure Size
